Lane-Based Vehicle Counting at a Remote Checkpoint

Anna Vacha

"Working within the constraints of a remote location, intuVision VA Traffic is able to obtain real-time, highly accurate counts of vehicles for each lane of the checkpoint. Without installing expensive invasive sensors, the staff can see detailed reports, separated by lane and classification type.”

The Customer Challenge

A state agency needed a low-cost solution for vehicle counting , at remote border inspection stations. They required counts for both passenger vehicle lanes and large truck lanes. intuVision VA Traffic analytics has met all requirements with accurate counts and detailed reporting capabilities.

Working with a local installer, intuVision provided a turn-key solution with a hardware-software bundle, providing hands-off deployment for the customer.

The Solution - intuVision VA Retail

intuVision VA Traffic provides a range of traffic data, including counts by lane and classification type. Its ability to learn the scene background and adjusting to changing lighting conditions, as well as filtering headlight reflections are crucial for getting accurate vehicle counts.

Benefits
  • Automated vehicle counts, separated by lane and classification type
  • Included reporting and dashboards for easy data overview and exporting for reports
  • Minimally invasive solution
  • Remote setup and configuration included, minimal effort from customer team

Equipment-at-a-Glance

Hardware: 2 custom intuVision Windows Servers, 9 AXIS cameras

Software: 9 channel intuVision VA Traffic v. 16.0

Deployment Details

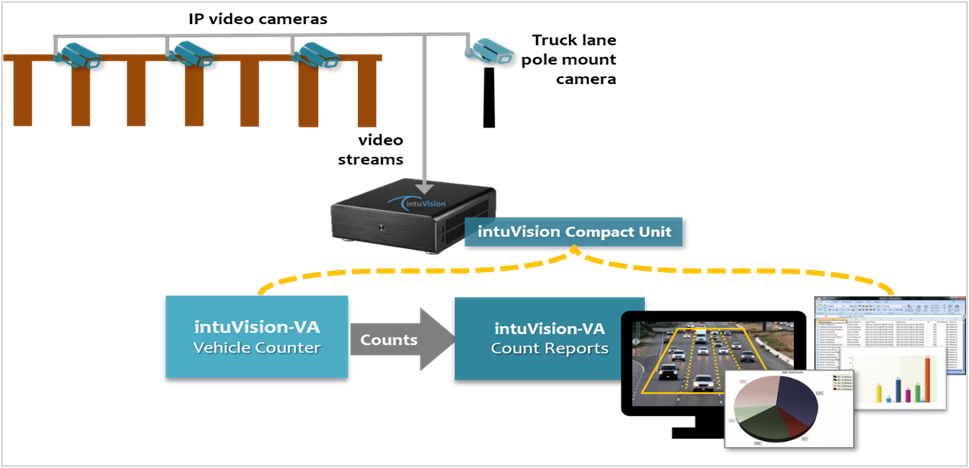

intuVision team delivered a turn-key system starting with a complete site design, working with local contractors for camera placement, doing the site configuration remotely, and then training the customer for accessing reports.

Each check-point location consists of 6-8 passenger vehicle lanes, with additional large truck lanes. Cameras were mounted directly overhead for the passenger vehicle lanes, and for the truck lanes; only a lower, side-oblique view was possible with a pole mounted camera. Up to three lanes are monitored by each camera, providing the lowest cost for the project while still obtaining accurate data on the counts.

Advanced tools such as headlight removal ensure that good results are obtained during day and night, as well as during different weather conditions.

intuVision VA Traffic Lanes functionality supports adding lane overlays to automatically separate counts by lane. Traffic lanes feature and event reporting by vehicle classification, enables detailed counts for each lane and by vehicle classification type.

You can contact us at info@intuvisiontech.com or call to learn more about how intuVision VA and find out how it could fit into your work flow needs.
