intuVision® VA

intuVision VA - a solution for every application, both real-time and faster-than-real-time for archived video.

intuVision VA Modules

Our robust and reliable Video Analytics are available six application packages to best fit any project requirements, and with flexibility in licensing so you only pay for features you use:

These modular packages offer a wide range of event rules and ways to combine rules for maximum flexibility. Any of the intuVision VA modules can be combined to achieve the best solution for any project. For example a store camera using intuVision VA Retail for customer counting during the day can be used to detect unusual activity at night, by adding intuVision VA Security module.

intuVision VA lives up to our motto "the intuitive video analytics" and facilitates the most intuitive user interfaces to configure analytics events as well as to review video and detected events with a selection of options, including:

  • Map view for at-a-glance understanding of detected events over multiple cameras.
  • Third party triggers to embed event information in other systems, including exacqVision VMS, Milestone VMS, Axis Camera station, Cisco VSM, and Immix.
  • Email notifications for alarms for instant distribution.
  • And more…

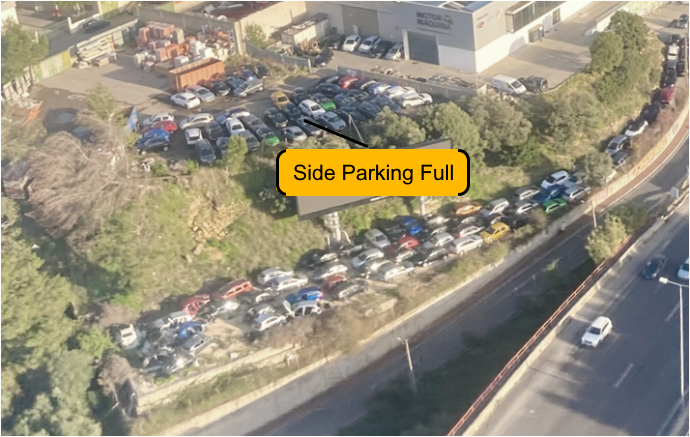

Parking:

Monitor your parking lots at a glance by knowing occupancy percentage and location of available spots in real-time. Receive alerts for parking violations such as loading zones or short-term parking. Our parking solution is a robust way to know when to issue tickets to violations, direct customers to open areas of a parking lot, and monitor for safety violations such as speeding vehicles or loitering pedestrians.

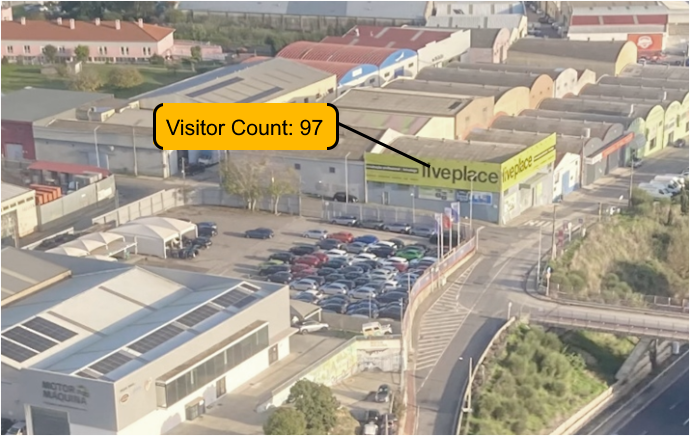

Retail:

Customer traffic information such as counts, flow patterns, queues and dwell time provides invaluable business intelligence. intuVision Retail module can notify managers that there is a long queue at the check-out line, report daily customer counts, and generate heatmap data of commonly traveled paths through the store. With intuVision Retail, intelligence data can be made available to other retail applications in place, increasing all aspects of business efficiency.

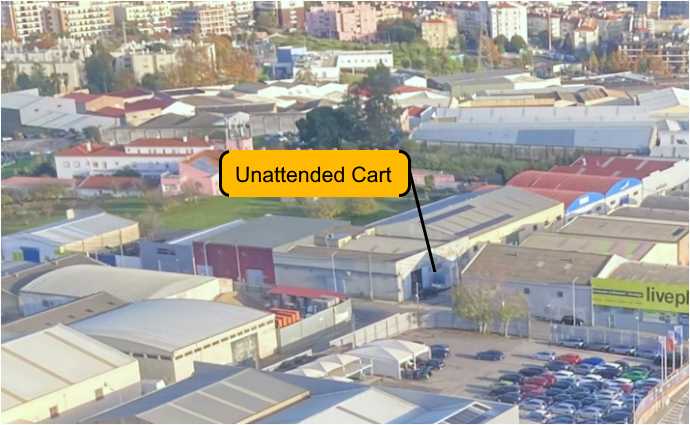

Security:

With a history of government projects and deployments, our analytics were originally developed for the security domain. intuVison Security can send an alarm directly to your Video Management System, or to your smart phone as an email. With many events to choose from a thief breaking into a doorway after hours, a person entering a one way door from the incorrect direction, or a vehicle loitering outside of your building, intuVision Security will notify the security staff of event occurrence.

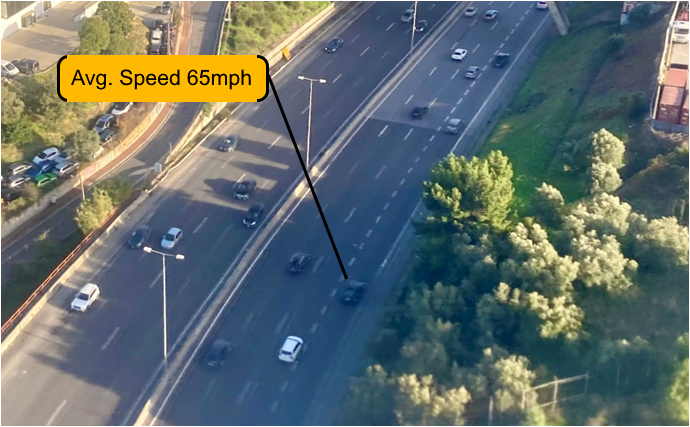

Traffic:

With intuVision VA Traffic, all you need is a camera and a computer for processing; no longer is it necessary to manually count vehicles in hours of video collected at intersections. While human counting is labor intensive, pressure hose counters are often inaccurate, and magnetic loop counters are expensive and not always feasible. intuVision Traffic is a mobile solution that can be moved from location to location to perform collection and analysis. The flexibility to process in either real-time or archived footage, will guarantee the perfect solution for any project.

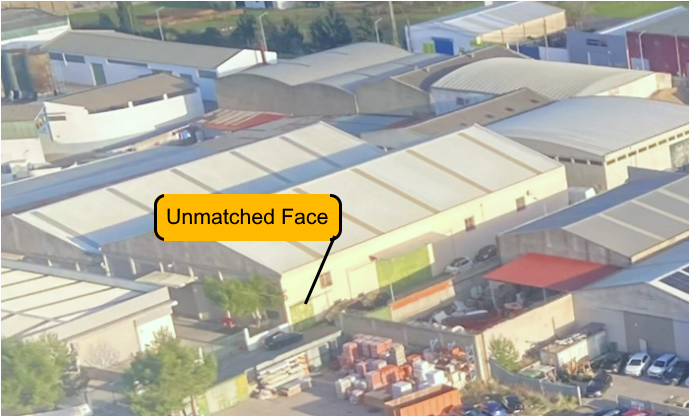

Face Detection & Matching:

Detect and catalogue people moving through your scenes using intuVision VA Face Detection and Matching. With face enrollment and matching, catalogued faces can be labeled with the appropriate names, and event notifications can be generated when an enrolled person enters the scene. This tool can also be used for counting people in scenes with challenging camera views for standard people counting, or for alerting if someone is not wearing a mask.

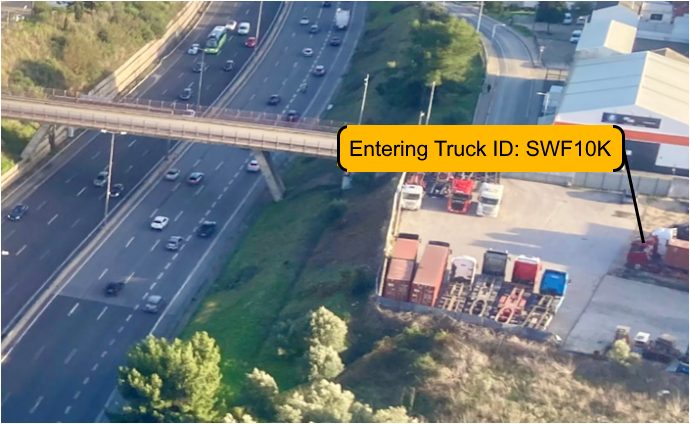

Text Detection:

Extending the reach and functionality of our video analytics solutions, intuVision VA now automatically detects text on moving objects such as the brands on trucks, ships, or words and numbers on signage and converts all alphanumeric characters into metadata linked to events. Available as a separately licensed intuVision VA module, intuVision Text can be used standalone or combined with other intuVision VA modules to meet your project requirements.


For more information about our products, email us at sales@intuvisiontech.com or complete a product evaluation form.

Purchase intuVision Video Analytics

Contact intuVision directly to purchase our analytics solutions. To find a reseller in your region, contact us at info@intuvisiontech.com. Integrators and resellers contact us at sales@intuvisiontech.com.

intuVision GPU Processing

Using the CPU, the computer must analyze each portion of the scene sequentially.

However, using GPUs, the scene can be broken up and each portion analyzed simultaneously.

intuVision's GPU enabled products lower the hardware cost of deploying Video Analytics

  • Support an increased number of cameras on equivalent CPU hw
  • Run video analytics on higher resolution video imagery without requiring special hardware
  • Increase the capacity of existing hardware for a fraction of the cost of a new computer by using a low-cost GPU card

Video analytics is a computationally intensive process and requires powerful hardware for accuracy. intuVision VA overcomes this computational hurdle by utilizing graphics processors designed for the video gaming industry.

Graphics cards contain powerful programmable coprocessors (GPUs) designed to process pixels in parallel, this provides great potential for acceleration of video analytics algorithms. All intuVision algorithms leverage GPU processing which results in lower hardware cost for deploying VA for any application.

CPU/GPU processing time comparisons of sample parallel intuVision VA processes are shown in the table below for different frame resolutions.

Processing times are in milliseconds per frame on a NVIDIA GTX 220 GPU card
Video Resolution 640x360 960x536 1280x720
CPU GPU CPU GPU CPU GPU
Process-1 15.59 1.72 42.41 5.38 81.38 8.34
Process-2 7.33 3.90 18.45 9.00 11.05 5.58
Process-3 4.66 2.02 51.50 16.59 23.30 7.62

Below is an example of faster than real time processing using a GPU, allowing extremely fast post-processing of videos.

Object Classification

One of the features which differentiates intuVision VA from other video analytics solutions is our robust classification. Available with all relevant event types in all intuVision VA Modules and intuVision LiTE, this allows you to dramatically hone in on the objects of interest.

The default classification types included with intuVision VA are person and vehicle, and with the ability to add unlimited user defined classification types, we open this up to you. Whether you want to exclude animals such as deer or dogs, detect between cars, trucks and motorcycles, exclude customers with shopping carts from your counts, or any other use case, we provide the freedom to do so.

While many similar "classifications" can be obtained by alarming only on objects of a certain shape or size, or objects that only move in a certain way, these characteristics will not provide the same confidence. In perspective views, where the objects in the far distance are smaller than those in the near, object classification is much more robust, not to mention it is easier to collect 5 training samples than to play with settings until you have a good description of what you are detecting.

The classification is set up through a brief training, allowing you to take images directly from your camera and use them as examples, specifying exactly what each type should be defined as on that camera. The training takes only a few moments, and allows us to get good classification results on any camera view.

Sample classification use cases:

  • Alarm only on vehicles to create a robust count without person detections included.
  • Alarm only on people, excluding deer and other animals.
  • Detect between vehicle types for more complete data.
  • Detect between single people and groups for differentiated customer counts.
  • Alarm only on people, and filter out false detections of doors or other moving objects.
  • For nature or farming purposes, detect only specific animals of interest.
  • In factories, detect incorrect items or residual material.
  • And many more...

intuVision VA: Intuitive User Interfaces

The intuVision VA system is split into two components through which users can add video streams or files to analyze, control object and event detection settings, and monitor events. The intuVision VA Admin performs tasks specific to administrators, while the intuVision VA Monitor allows for efficient camera and event observation.

intuVision Admin

The intuVision Admin (below) is used to add and configure new video sources (from live camera or from file) and to create event spies. The intuVision system is preconfigured for quick start up times, but is also highly customizable for optimal results over a wide range of event scenes. In most deployments, you will only need to adjust 1 or 2 settings before adding your events. In more challenging scenes, we still give you access to advanced settings, so you can achieve optimal detections.

screen shot of the intuVision VA Admin GUI, with easy to use view customizations.

intuVision Review

The intuVision Review is the client application, used to watch the activities of tracked objects, camera views, and the processing and event detection results. Many different options for the camera display are available, including the capability to set up touring camera groups.

image of intuVision VA Monitor GUI

Intuitive task centric views let you easily accomplish tasks, such as event review, searching for events, reviewing archived video, generating reports, searching and reviewing tracks, and generating heatmaps. While different tasks will be used more for different types of deployments, the functionality is included to allow you to get the most from your processed video.

Live Video

Review your live video at a glance, with the ability to include up to 48 cameras in one camera layout, see the event zones over-laid on the live video, see up-to-date counts and flashing indicating unreviewed events on that camera.

Optionally, give your users the ability to pause processing and add privacy masks from this application for a preset duration.

Events View

Access and review events detected by intuVision VA. You will see the list of events, when one is selected, you can see the event snapshot and event details, along with the live video of that camera. Events can be deleted, flagged, or acknowledged, including the ability to add event descriptions. Optionally, events and event snapshots can be exported and shared.

Search Events View

Events can be searched according to a variety of properties, including classification type, schedule, camera, event, and time period. The filtered events can be reviewed, with the event snapshot and event details available. Events can be exported as a CSV for further event analysis in other programs.

Archive Video

intuVision VA can either archive video for you or can ingest archived video from one of our VMS partners. Search for the video duration of interest, and view the events only summary.

Reports View

Events from multiple years in the past can be used to generate reports. Typically used in retail or traffic domains, this feature can also let you compare events this year vs. previous years to show efficacy of new security measures. Events are displayed in a variety of attractive charts and are ready for export and to be shared with decision-makers.

Tracks View

Unforeseen occurrences sometimes occur, and tracks can be saved and searched after the fact for specific events or instances. For instance, you are using intuVision Retail primarily for people counting and for heatmaps, but you determine that there has been a suspicious incident, and you get a tip that the person was wearing a red sweatshirt. Object tracks can be searched by time, date, camera, location, classification type, and color - and then reviewed in an easy list. If video archiving has also been enabled, you can view the video associated with this person.

Heatmap View

Using heatmaps, users can see the accumulated travel information over a selected period of time. As more objects travel on a path or pause for various durations, the heatmap reflects these actions. Used in a traffic scenario, users can tell at a glance where the bottlenecks are and can change the traffic light patterns accordingly. Similarly, in a retail environment, users can tell at a glance which sale items attract the shoppers’ attention and which paths are most commonly travelled.

intuVision VA Specification List

This table offers a detailed overview of the different features and specifications included in intuVision VA. For more information on the domain specific event rules included in each module, see the specific module page: intuVision Face, intuVision Parking, intuVision Retail, intuVision Security, intuVision Text and intuVision Traffic.

Features
Object Classification
Machine Learning object classifier, User trained classification types
Event detection feedback for classification reinforcement
Events (All listed in the relevant intuVision VA module information sheets)
Compound Events
Multiple ingress/egress point and multi -camera occupancy counts for people and vehicles
Tailgating detection with access/gate control devices
Random SelectorUnbiased selection of people, vehicles, and objects for inspection at a user set rate
Event Summary view
Video Archiving
Reporting Event statistics, counts, line, bar and pie-chart graphs, time period comparisons
Heatmaps (Motion and Dwell)
Object Color, Class and Event Based Object Search
Camera Settings and Event Configuration Templates
Automatic Day/Night Mode by Geographic Location
Input / Output Triggers (HTTP(S) triggers to/from 3rd party devices)
Event Linking
Audio Alarm
Contact Closures
Email via SMTP
Metadata Push
HTTP(S) Linking - event alarm or count digest
Auto-PTZ*
API (Configuration and Data)
Webserver & RSS
Analytics Marked-up RTSP Video Stream Output
User Groups
Access privileges
Event acknowledgement customization
UI customization by user group
LDAP Support for User Management
GPU Acceleration for high performance
Post Processing (faster than real-time)
System Auditing Tools (general & by user)
Failover Support Backup/Restore
Distributed System
Remote System Monitoring
Data Security On prem solution, no cloud component, option to disable storing snapshot images
Supported Video
SensorsColor, Black & White, Thermal, Infrared
ResolutionsHD (1280x720), D1 (704x480), 4CIF(640x480), CIF(320x240)
FormatsH.264, MPEG-4, MPEG-2, Motion JPEG, DirectShow Capture Cards
VMSexacqVision, Milestone, Axis Camera Station, Cisco VSM, HikVision, Immix
File FormatsASF, AVI, MP4, MPG, WMV
Hardware Requirements (determined by number of streams, specs are available upon request)
ProcessorIntel i5 Quad Core 2.2 GHZ or higher
RAM/ Hard Disk4 GB or higher / 500 GB or higher
Graphics CardNVIDIA
Operating SystemWindows 11, 10 (64-bit), Windows Server 2012 SP2 or newer w/Desktop Experience, Linux (Ubuntu 20.04)
NetworkGigabit Ethernet
Network ProtocolsDNS, HTTP, ONVIF, RTSP, RTP, SMTP, TCP/IP, UDP, ZeroConf
Capacities
Camera (video stream) CountRestricted by license
Frame RateMinimum 6-8 FPS
UsersUnlimited
Detected TargetsUnlimited
Detection ZonesUnlimited
SchedulesUnlimited
Classification TypesUnlimited
Monitoring
Live VideoUp to 48 live simultaneous streams with overlay markups
Floor PlanLive video, event occurrence, parking lot occupancy on floor plan image
Event ReviewEvent log, event details, snapshots, motion history, visual and audible warning, archived video*
Event NotificationEmail, RSS, API, HTTP Trigger, Contact Closures**, Audio Alarm**
Event MarkupSuperimposed on monitored video
Event GraphingPie, line and bar charts by time period and comparison over two periods

intuVision VA Release Notes

Below you can see a listing of the intuVision VA Release Notes, including spotlights on new features, a record of our development history, etc:

New releases are available to users within their software maintenance period. Please reach out to us to schedule your software update. If you are running an older version of intuVision VA, we are happy to help with any questions.

Versions older than 11.0 are currently not eligible for upgrades.
